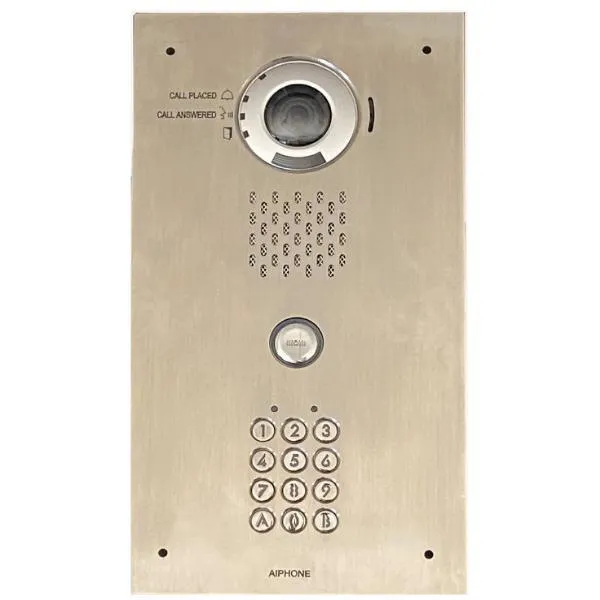

＋The IX-DVF-AC is a SIP compatible IP Video door station, it is vandal resistant, features a stainless steel faceplate and is a flush mounted design with HID multiclass reader.
Model: IX-DVF-AC Door Station
The Aiphone IP Video Door station is compatible with the IX series.
SIP - Peer to Peer- Backwards Compatible
Door Station Features
- SIP 2.0 compliant
- 1.23 megapixel fixed colour video camera
- White LED for low light illumination
- ONVIF Profile S compliant
- Camera vertical adjustment 15, 0, or -8 (manual)
- Weather and vandal resistant (IP65), (IK08)
- 2 contact outputs on the audio/camera section
- RJ45 in/out with PoE pass through (802.3 at/af Type 2 PoE )
Shop CTC Communications for best deals on
Specifications
- Material: 306 Marine Grade Stainless Steel
- Dimension: Panel 284mm H x 178mm W (Back box 270mm H x 148mm W x 54.9mm D)
- Power Source: PoE (IEEE 802.3af class 0)
- Power Draw: 52.8W
- Camera: " CMOS 1.23 megapixel
- Min. illumination: 5 lux
- Audio Codec: G.711 (-law, A law) G.722
- Protocols: IPv4, IPv6, TCP, UDP, SIP HTTP, HTTPS,
- RTSP, RTP , RTCP, IGMP, MLD, SMTP, FTP,
- DHCP, NTP, DNS
- Port Security: IEEE 802.1X
- Operating Temp: -40 ~ 140F (-40 ~ 60C)
- Protection Rating: IP 65
- Power Source: 12-24V AC or 12-24V DC
- Consumption: Max. 100mA
- Output Rating: 2 Form C dry contacts, 24V AC/DC,
- 3A (resistive), 1A (inductive)
- Wiring: Two conductors
- Operating Temp: -4 ~ 140F (-20 ~ 60C)
- Protection Rating: IP54
